| Machines » Borers All Types » 100A with DRO
|
|
|
|
|
|
| Product Gallery : |
|
|
|
| Enlargeable Images : |
|
|
|
|
|
|
|
|
 |
| Category |
: |
Borers All Types |
|
| Serial No |
: |
Not Available |
|
|
|
| Type of Machine |
: |
Table Type Borer |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
there is no tailstock
| Technical specifications |
| Workspindle dia |
mm |
100 |
| Spindle taper |
ISO 50 |
| Spindle speed range |
RPM |
7.1 - 1,120 |
| Main motor power |
kW |
11 |
| Table cross travel X |
mm |
1,600 |
| Headstock vertical travel Y |
mm |
1,120 |
| Table longitudinal travel Z |
mm |
810, 1250 |
| Spindle stroke W |
mm |
900 |
| Table size |
mm |
1,250 x 1,250 |
| Maximum table load |
kg |
3,000 |
| Feeds |
mm.min-1 |
18 - 900 |
| Rapid traverse for X, Y, Z |
mm.min-1 |
2,800 |
| Total power consumption |
kVA |
15 |
| Machine weight |
mm |
14,000 |
| FACING HEAD |
|
|
| Diameter |
mm |
600 |
| Slide travel |
mm |
210 |
| Facing dia max. |
mm |
900 |
| Speed range |
min-1 |
7.1 - 224 |
|
|
|
| Boring dia with bar dia 80 |
mm |
180 - 425 |
| Boring dia with bar dia 100 |
mm |
250 - 425 |
|
|
|
| Description : |
|

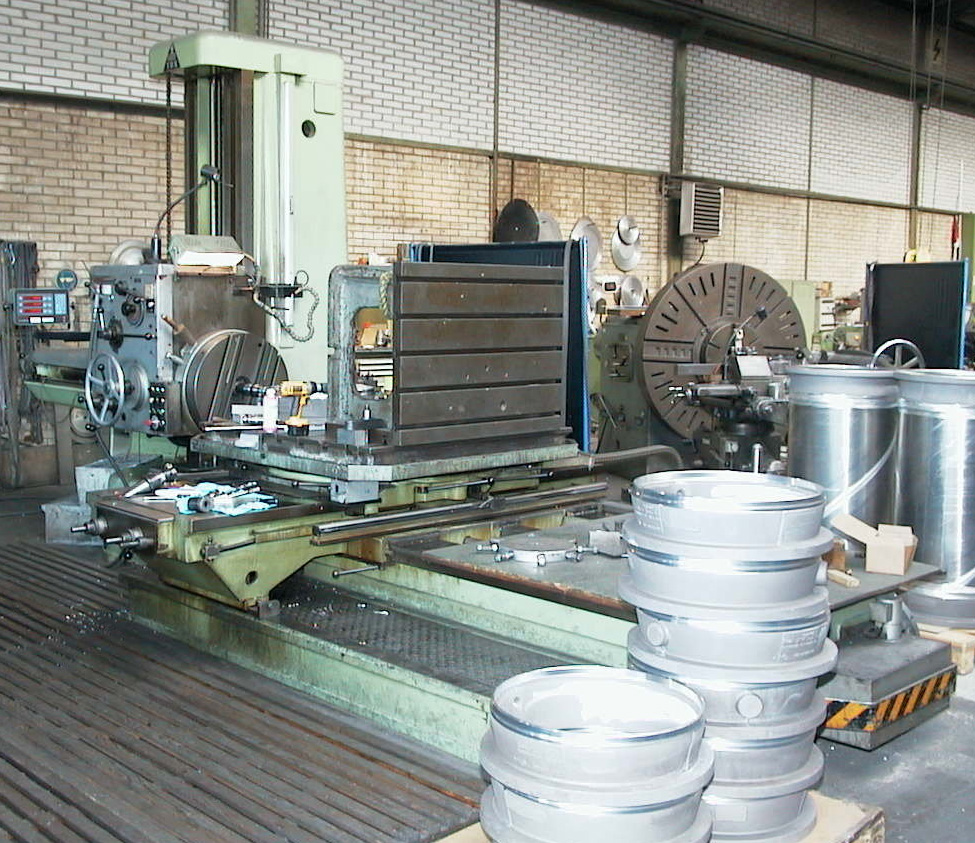

W100A ranks among the best selling conventional types made in TOS VARNSDORF a. s. It is a well-known borer, one of the widest spread manually controlled ones of its kind, popular for its high versatility, rigidity and machining power available for a very friendly price.
The borer is of a classical design with a fixed column, live spindle and a crosswise traveling indexing table.
|
|
|
