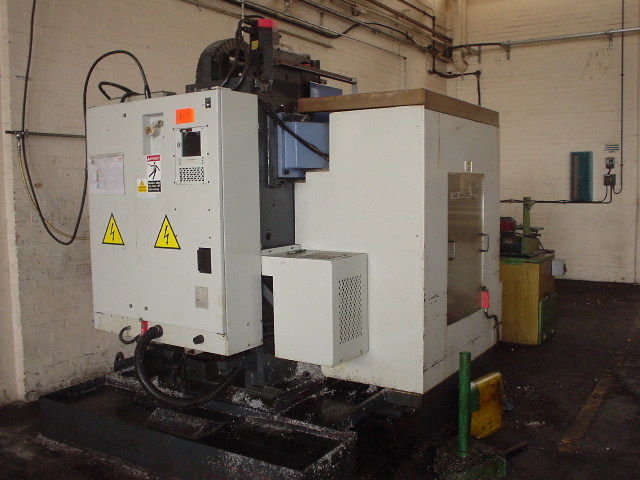

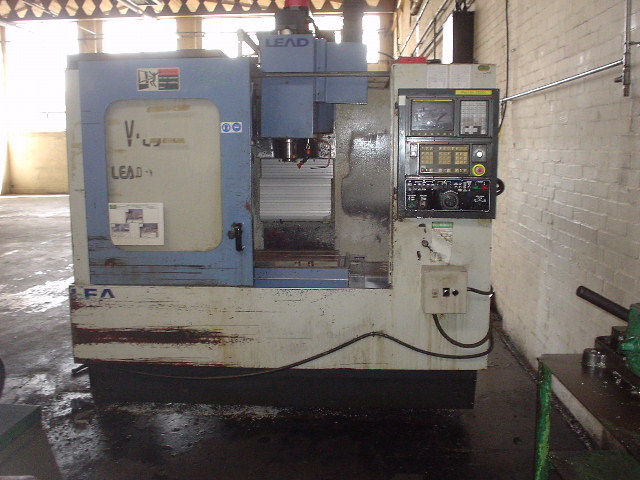

MACHINE SIZE:
Length - 2300mm
Width - 2100mm
Height - 2650mm
TABLE:
Table size - 770x400mm
Max load capacity - 300kg
TRAVEL:
X/Y/Z axes travel - 650/410/410+110mm
Spindle nose to table surface - 130-540mm
SPINDLE:
Spindle motor (continue) - 5.5kw
(30min) - 7.5kw
Spindle speed (Fanuc) - 80-8000rpm
Spindle taper - 7/24(Mas-bt40)
Gear ratio - 1:1
FEED MOTOR:
X/Y/Z (Fanuc) - 1.0/1.0/2.1kw
FEED RATE:
X/Y/Z rapid feed rate - 20/20/15 m/min
Feed rate X/Y/Z - 0-5m/min
AUTOMATIC TOOL CHANGER:
Tool shank type - BT-40
Pull stud type - Mas 407-T40-1
ATC type - armless
Tool capacity - 20
Max tool diameter - 115mm
Max tool length - 250mm
Max tool weight - 7kg
ATC tool to tool - 7sec
ATC chip to chip - 14sec
Tool pocket pitch - 95mm
ACCURACY:
Positioning - +/- 0.01mm/full travel
Repeatability - +/- 0.005mm
Power requirement - KVA 20
|
