| Machines » Gear Related Machines » sah 10 |
|
|
|
|
|
| Product Gallery : |
|
|
|
| Enlargeable Images : |

|
|
|
|
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

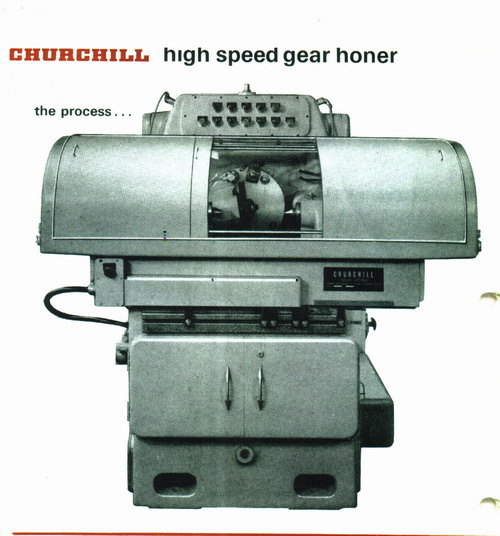

high speed gear honing |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
Excellent Condition Gear Honning Machine.
High Speed Gear Honer Machine.
Fixed Headstock x maximum -- 260.3mm.
Hydraulic tailstock y maximum -- 152.4mm
Height from table to centre of work -- 161mm
Table Travel either side of centre -- 127mm
Home head swivel -- 22 1/2 each side
Maximum Diameter of hone -- 244mm
Maximum diameter of gear -- 254mm (with 228.6mm hone) & 304.8mm (with 177.8mm hone)
Main drive motor -- 2 Hp
Hone speed -- 192-360 rev/min
Machine Weight -- 2170kg
|
|
|
| Description : |
|
Used high Speed Gear Honer rebuilt by MCL in 1996 , PLC control.
Very good condition.
Maximum diameter of Gear to be Honed 254mm.
|
|
|
