| Machines » Pressure Die Casting Machines (PDC) » m 120
|
|
|
|
|
|
| Product Gallery : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dimensions |
: |
1210 x 4147 x 1550 mm |
|
|
|
| Location |
: |
Mumbai Warehouse, India |
|
|
 |
| Category |
: |
Pressure Die Casting Machines (PDC) |
|
|
|
|
|
| Type of Machine |
: |
used cold chamber pressure diecasting |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
Locking force |
: 120 mp |
|
Max. injection force |
: 20 mp |
|
Ejection force |
: 7.8 mp |
|
Min. die height |
: 140 mm |
|
Max. die height |
: 420 mm |
|

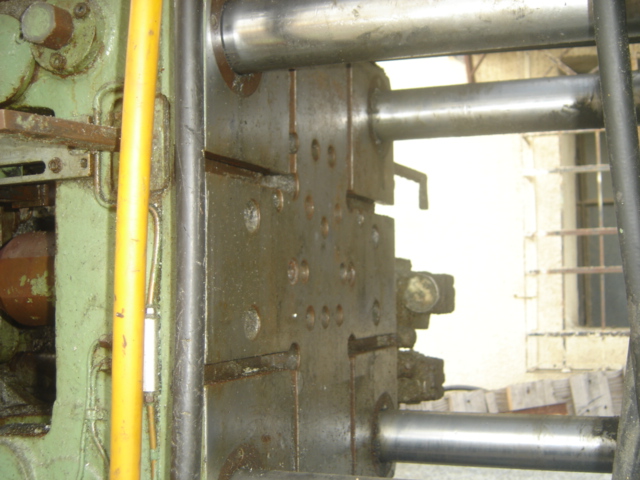

Platen dimensions |
: 560 x 560mm |
|
Distance between tie bars |
: 360 x 360 mm |
|
tie-bars diameter |
: 70mm |
|
Moving platen stroke |
: 275 mm |
|
Ejection stroke |
: 70 mm |
|
Max surface area with pressure on metal |
: 343 cm2 |
|
Max Short weight |
: 1.6kg |
|
casting cycles (free) |
: 13 n/1 |
|
|
|
| Description : |
|

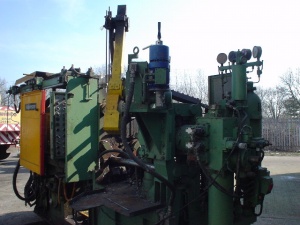

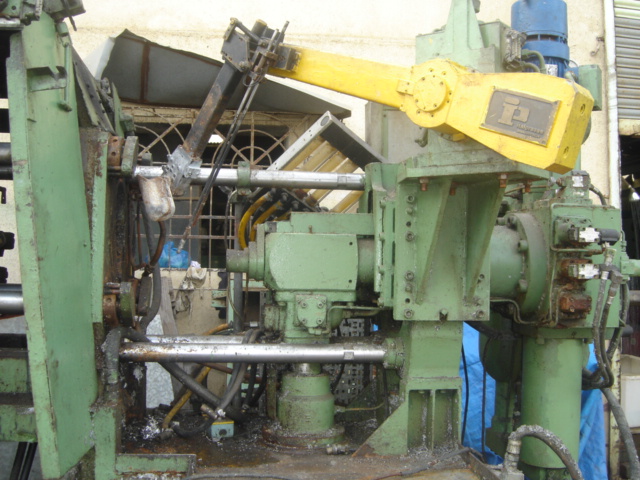

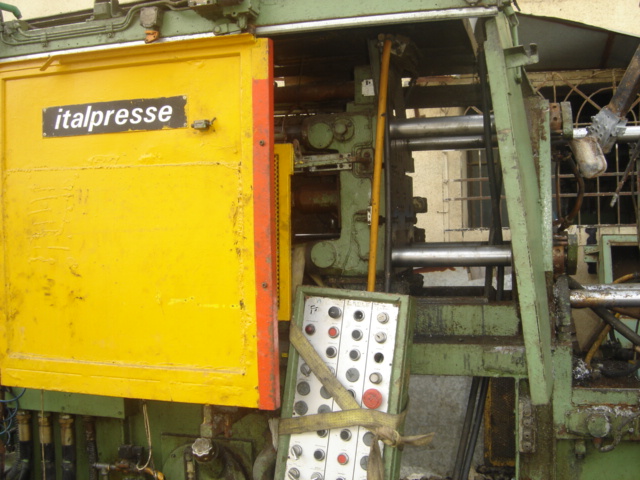

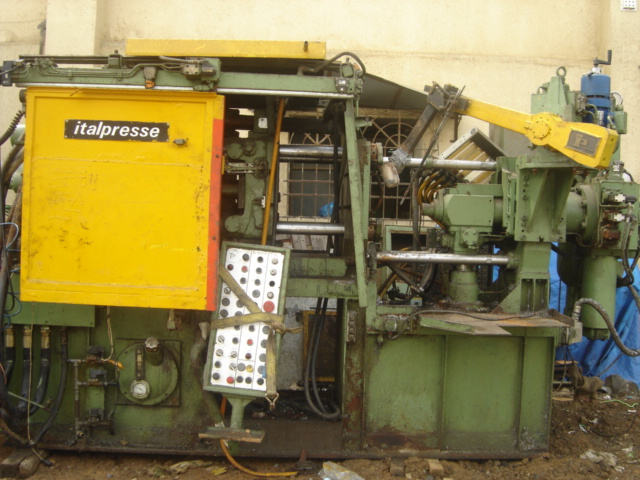

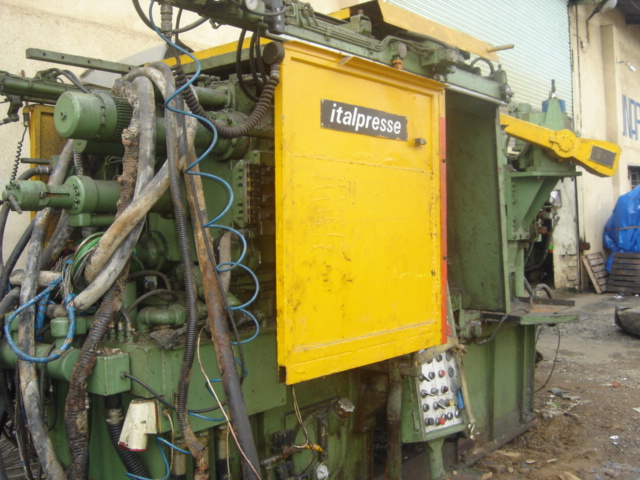

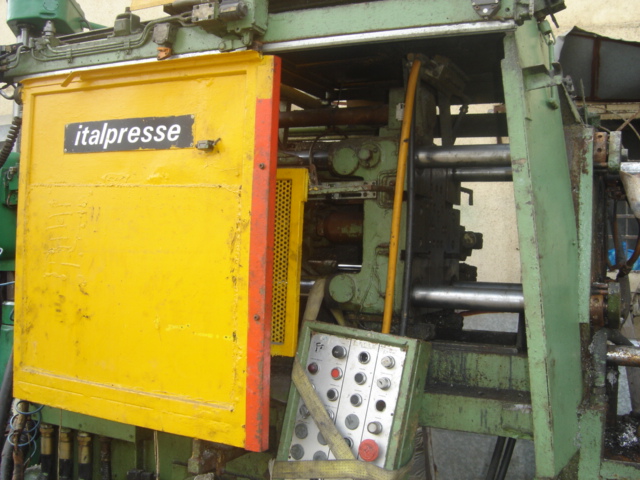

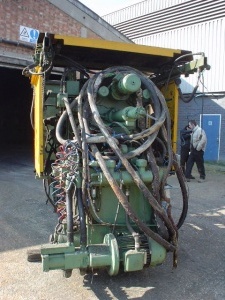

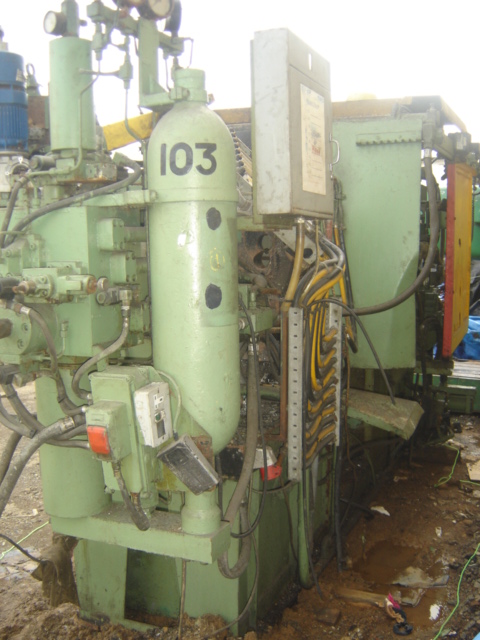

Used 120 ton Pressure Diecasting machine complete with Auto Ladle mounted on the machine. Full machine guarding, central lubrication , automatic dieheight , core pull etc.
|
|
|
|
|
