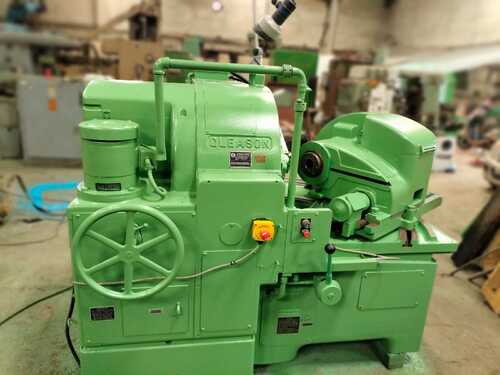

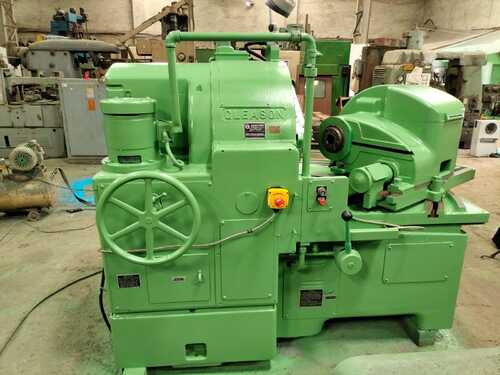

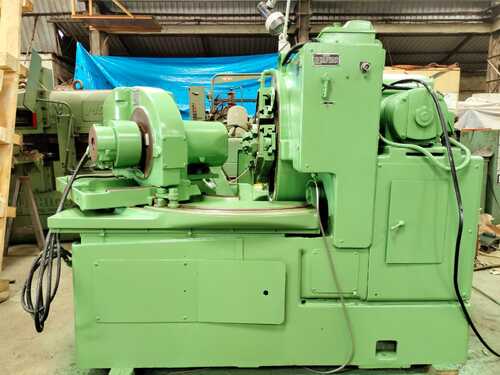

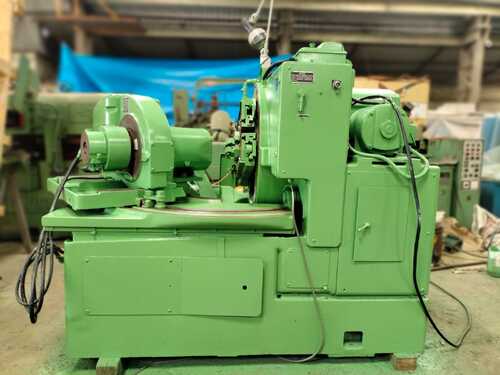

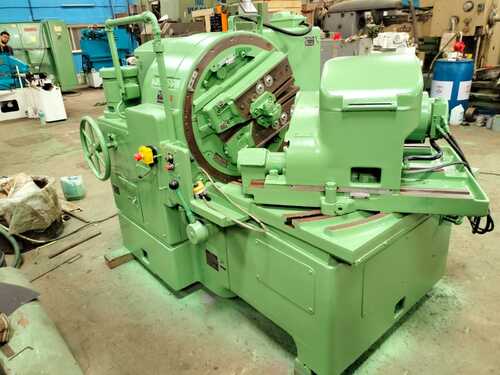

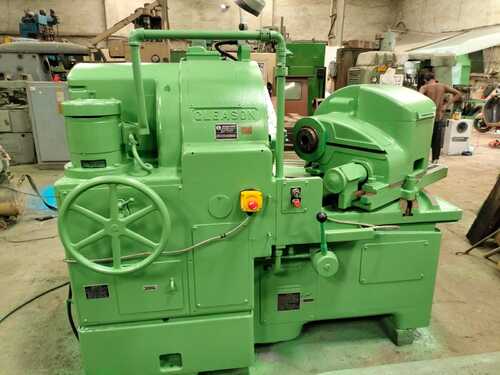

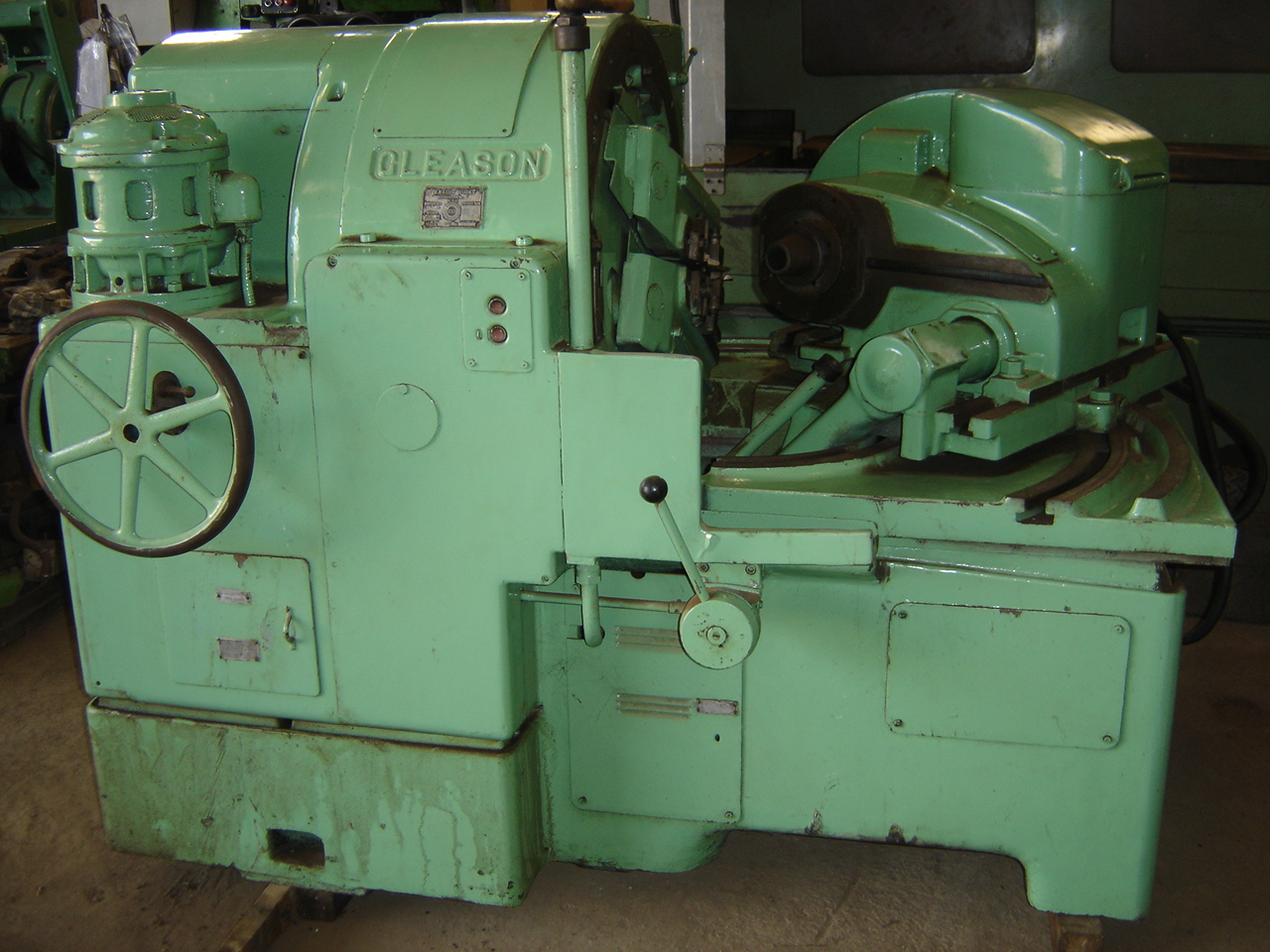

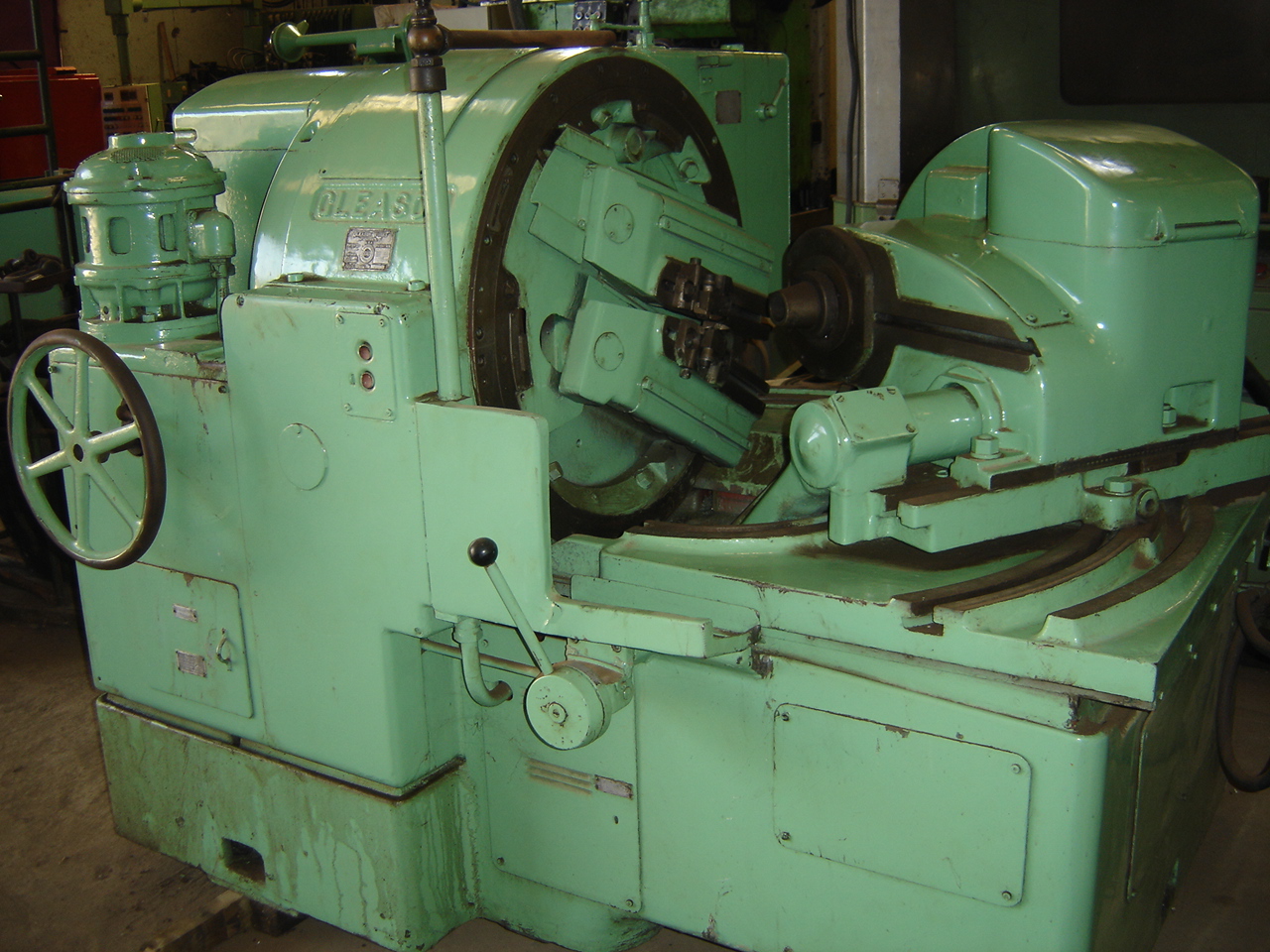

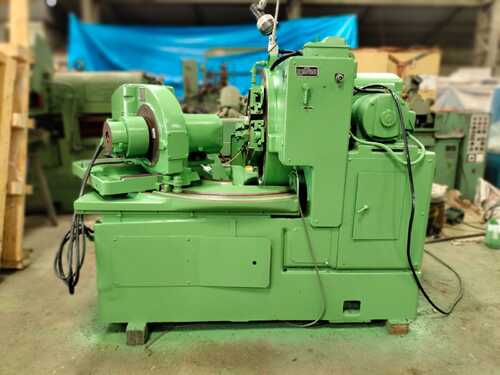

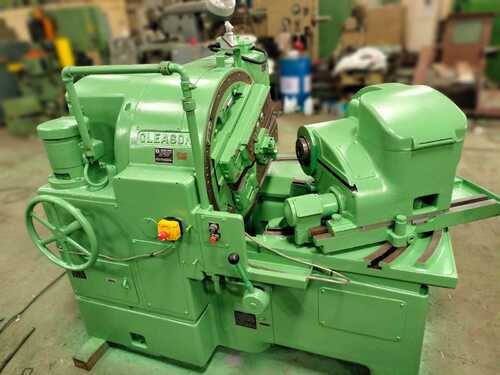

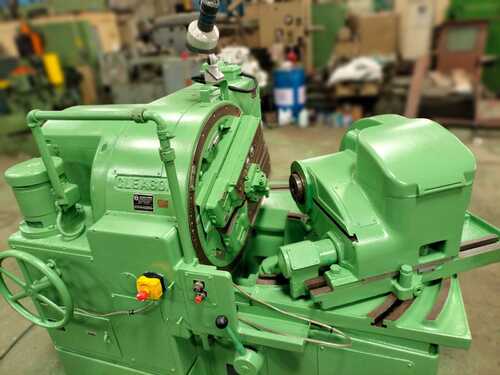

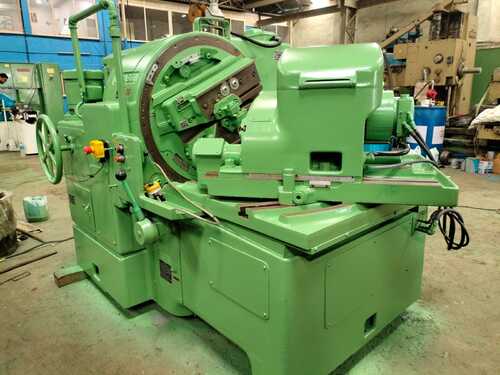

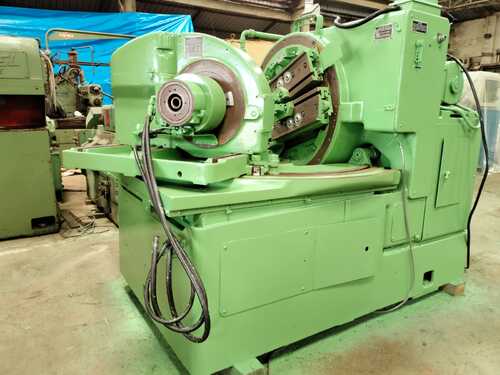

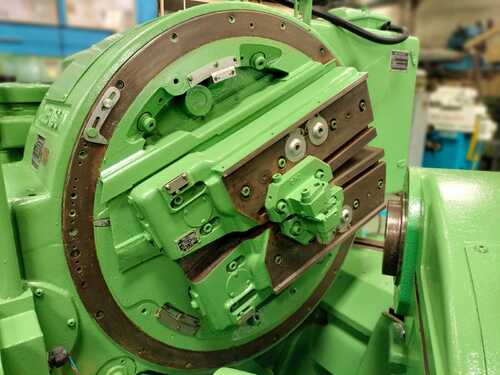

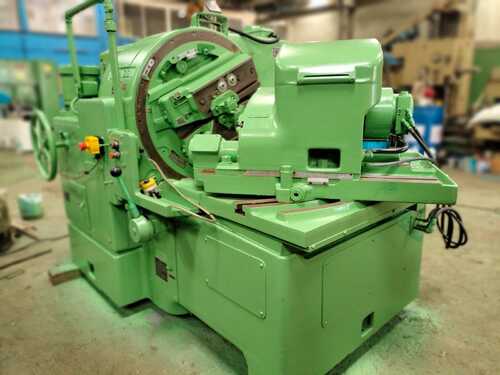

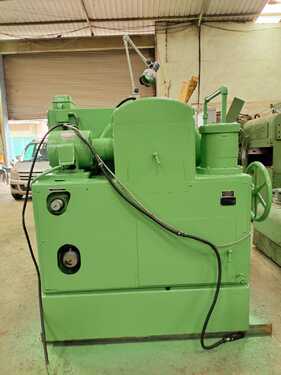

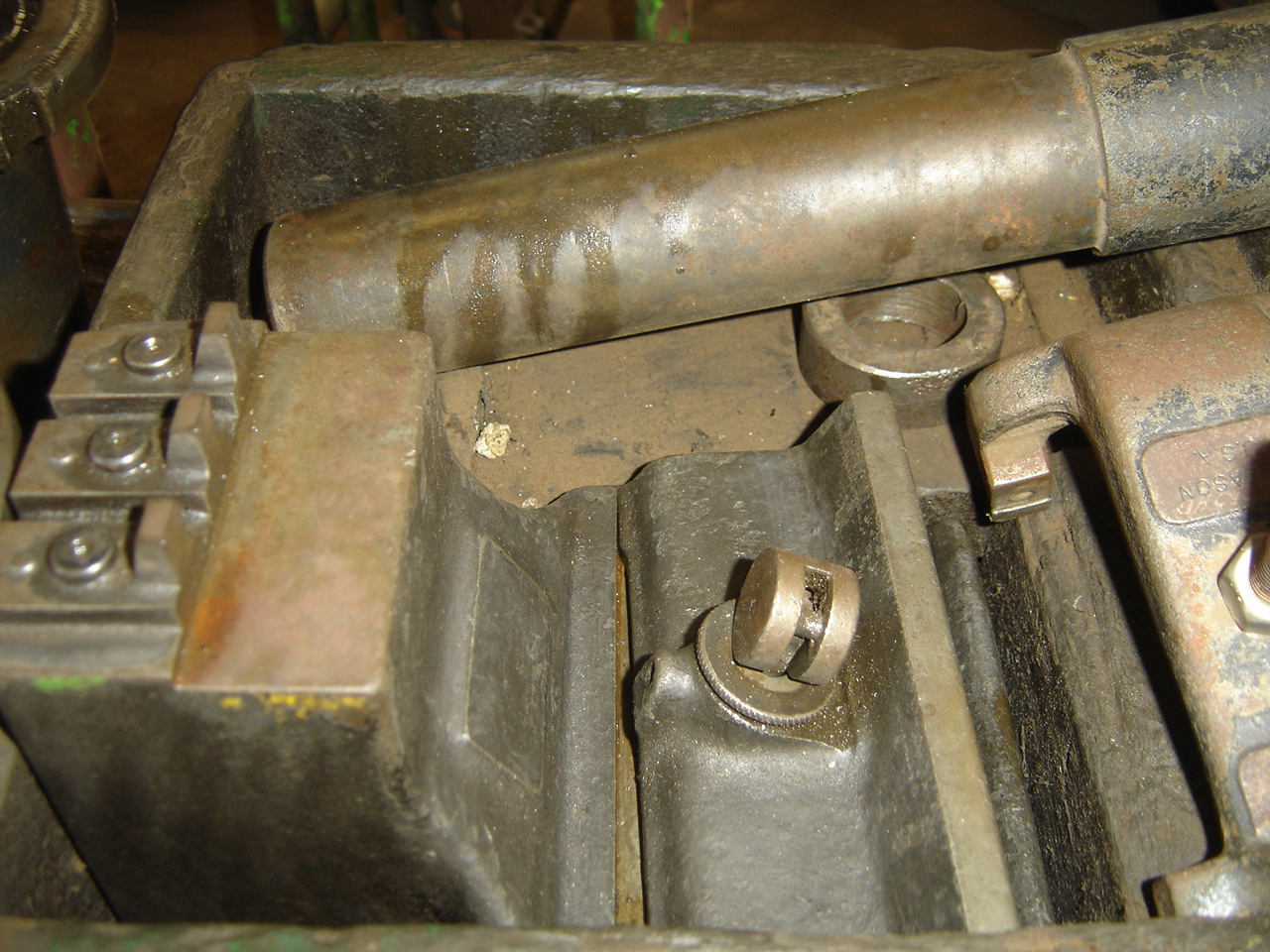

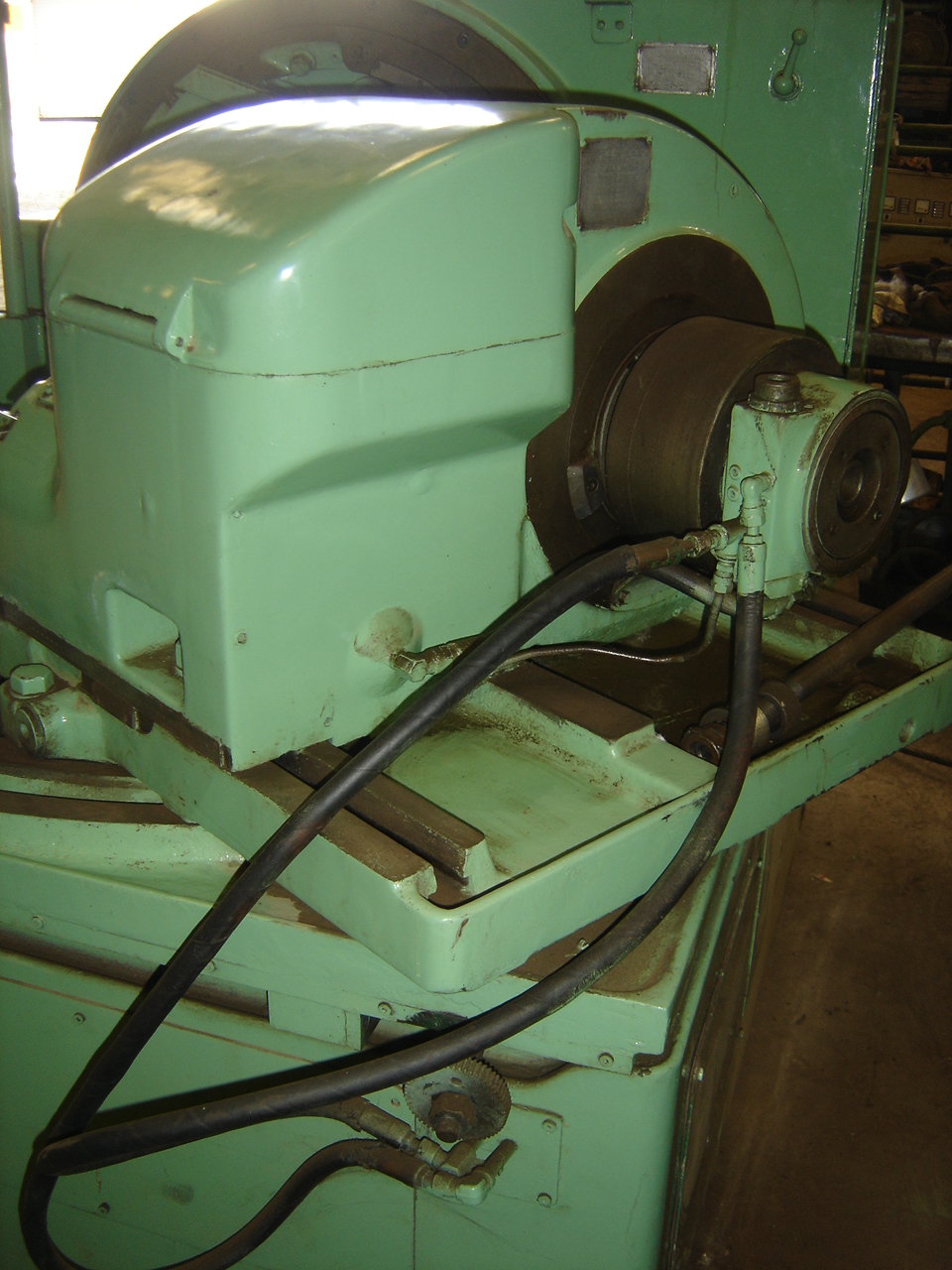

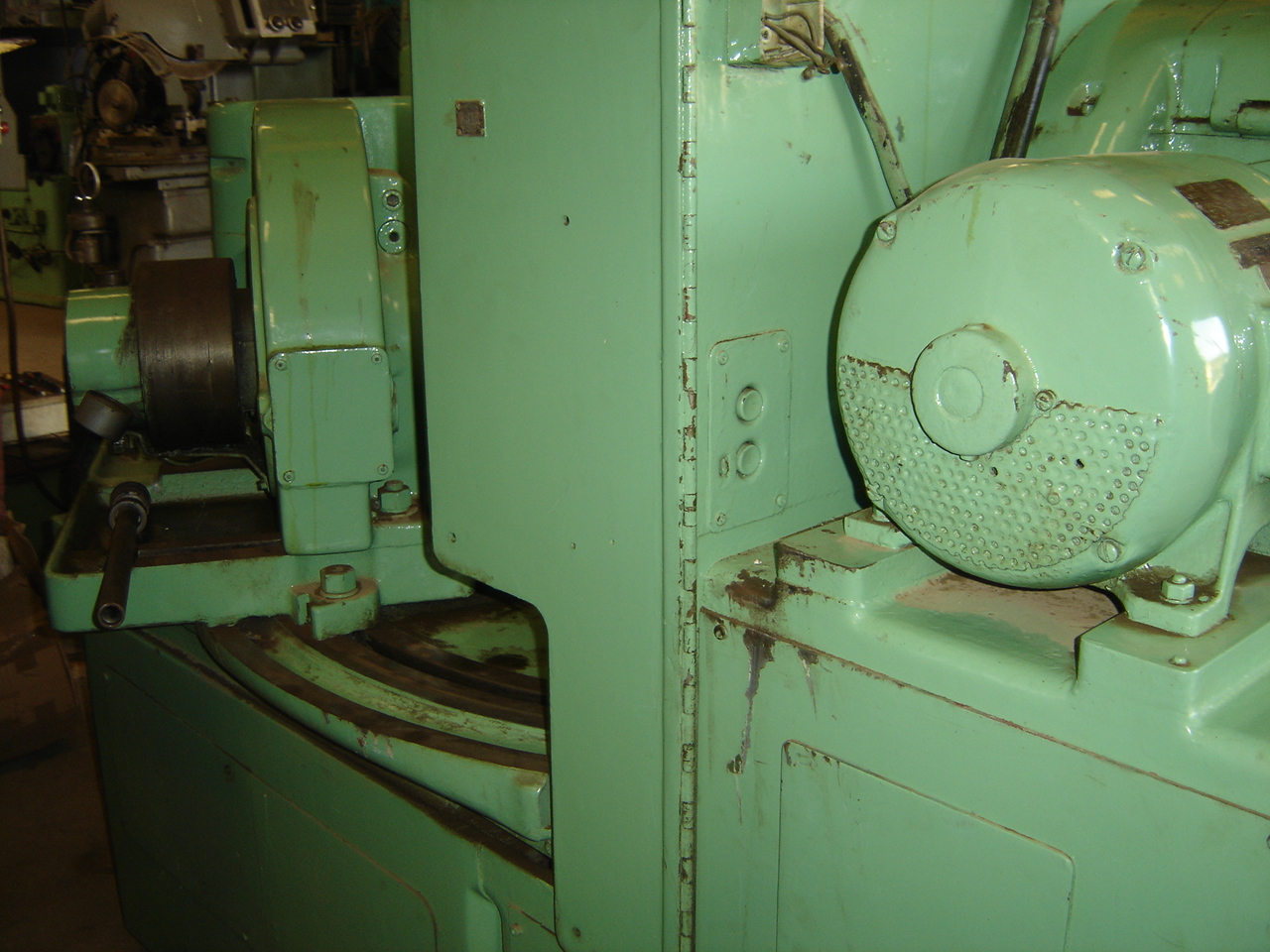

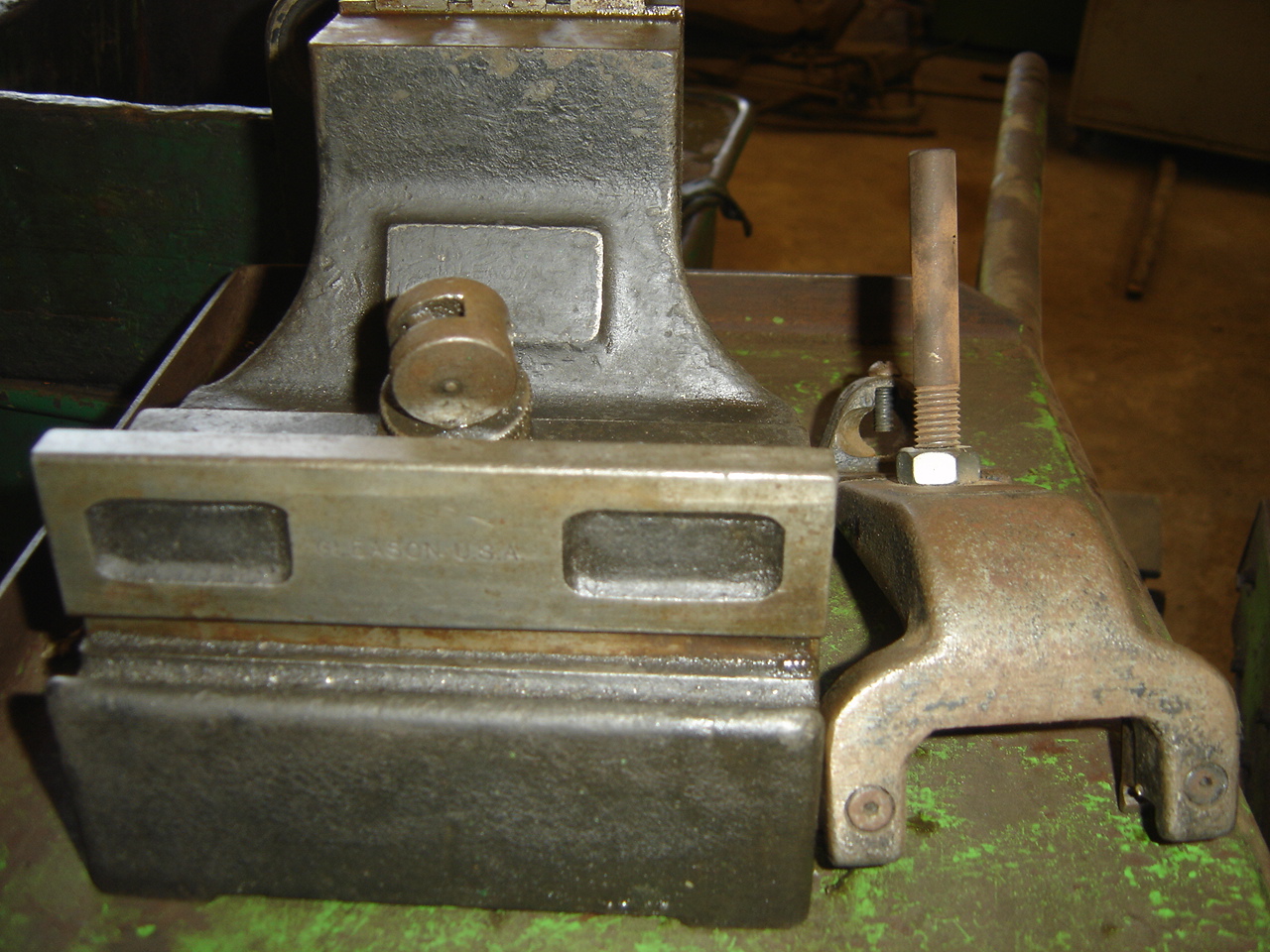

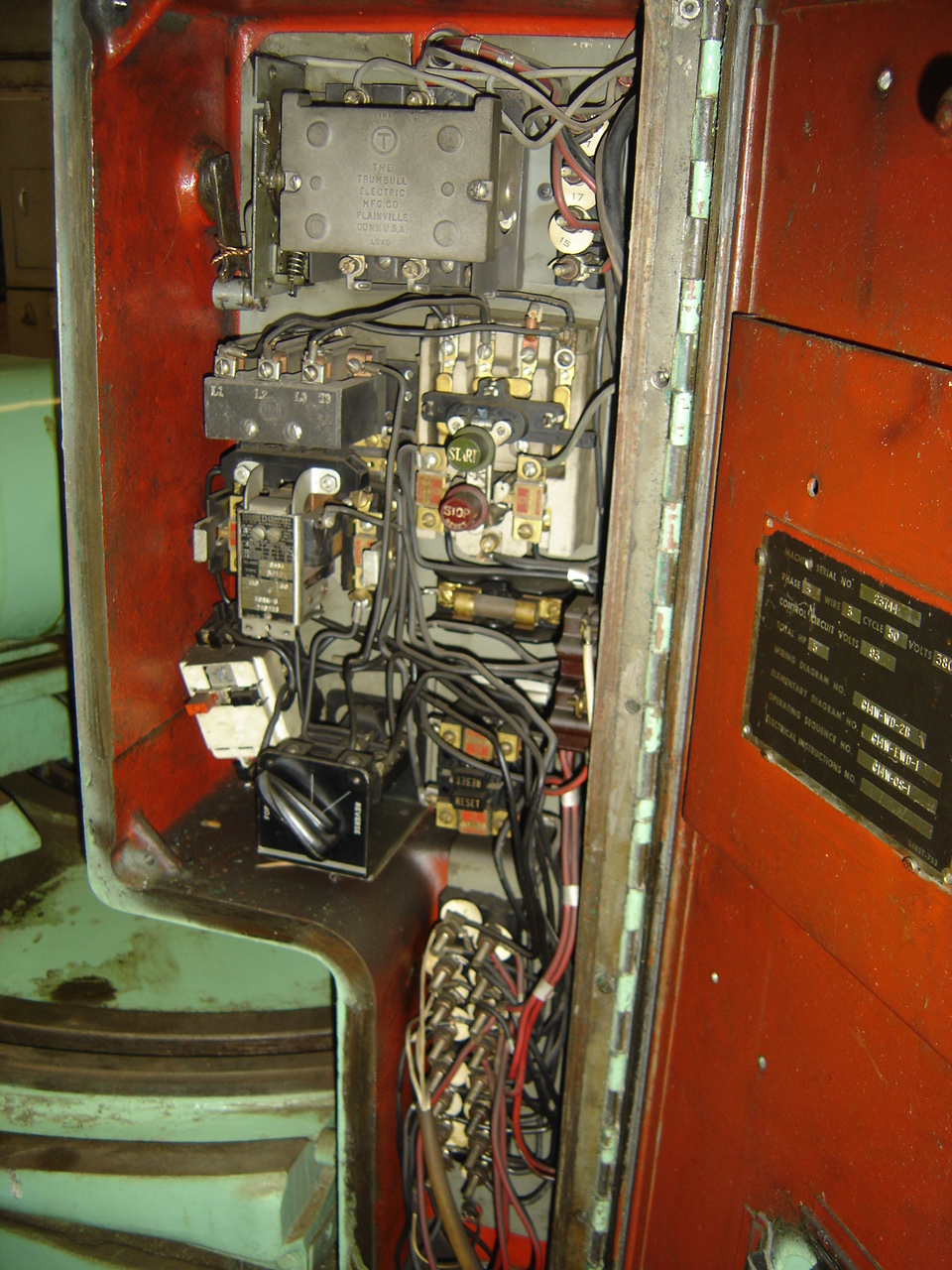

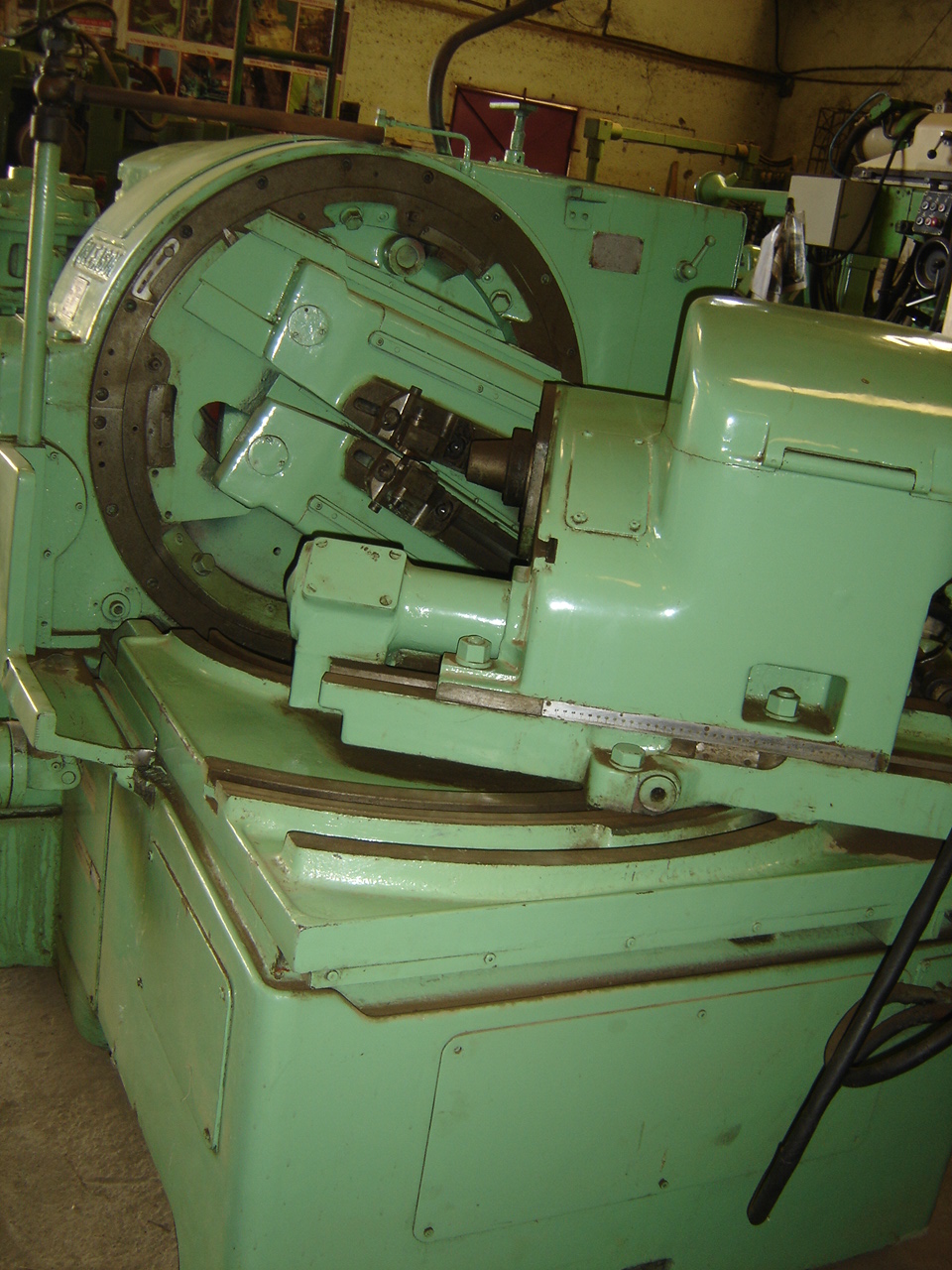

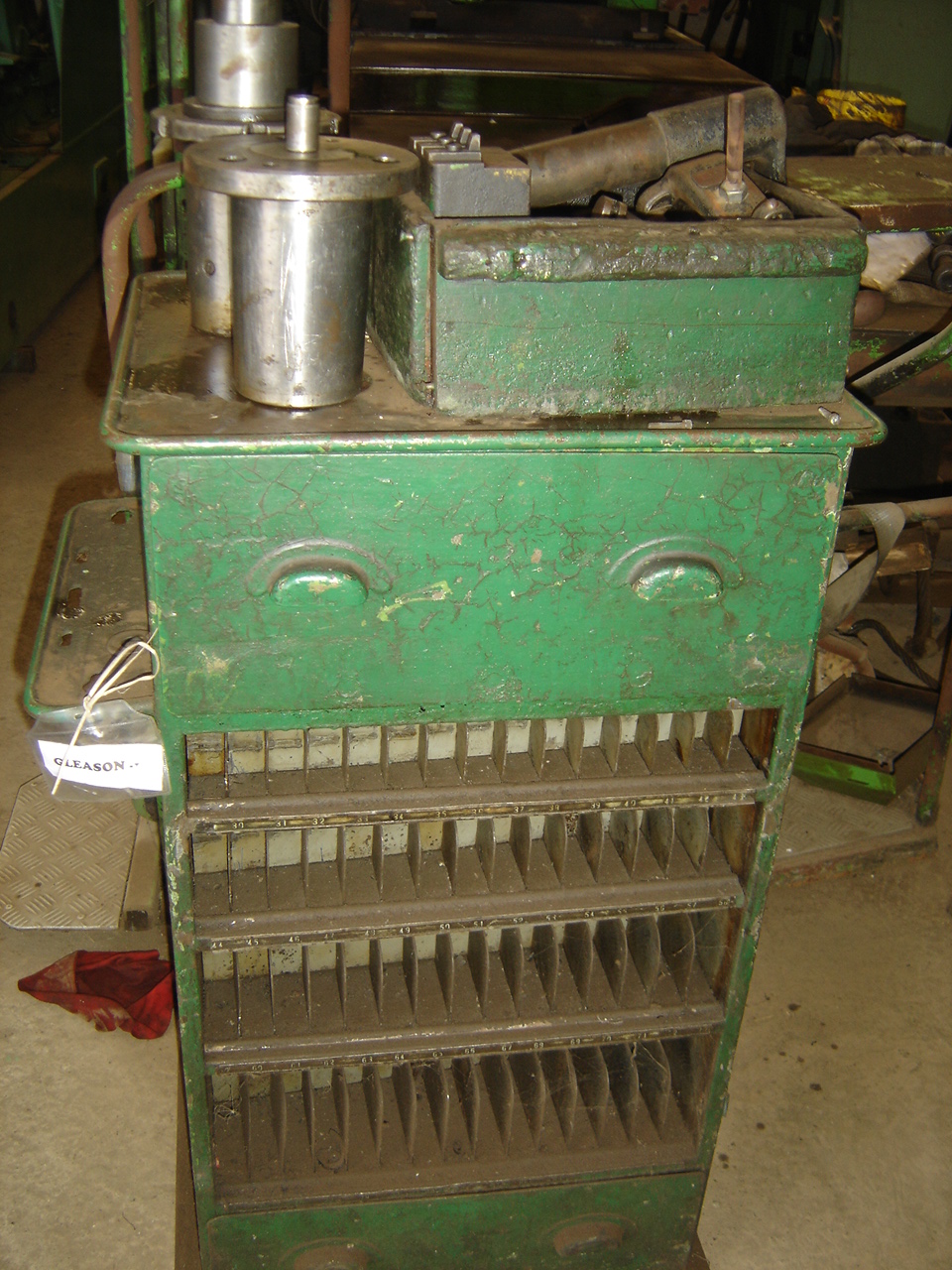

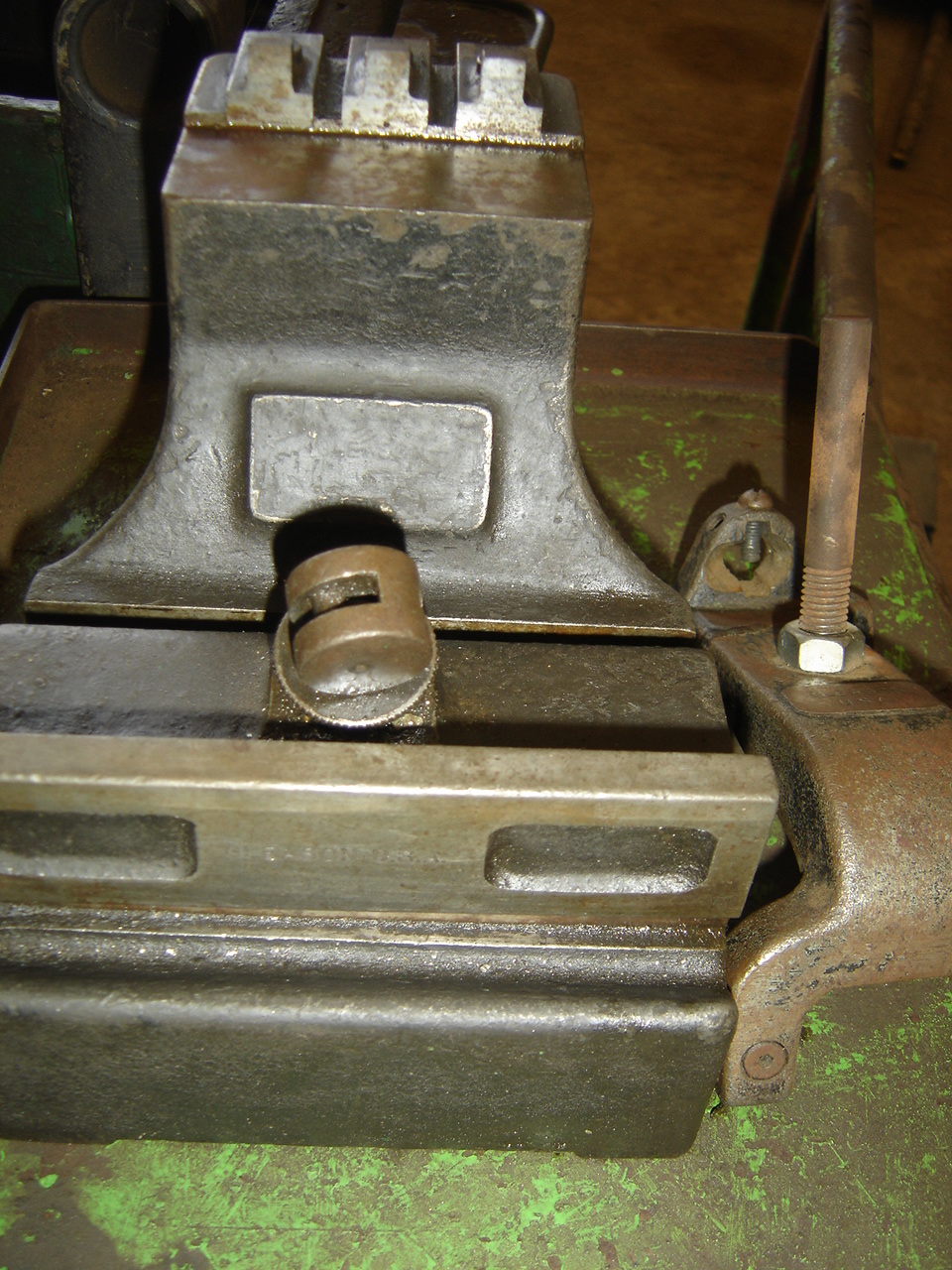

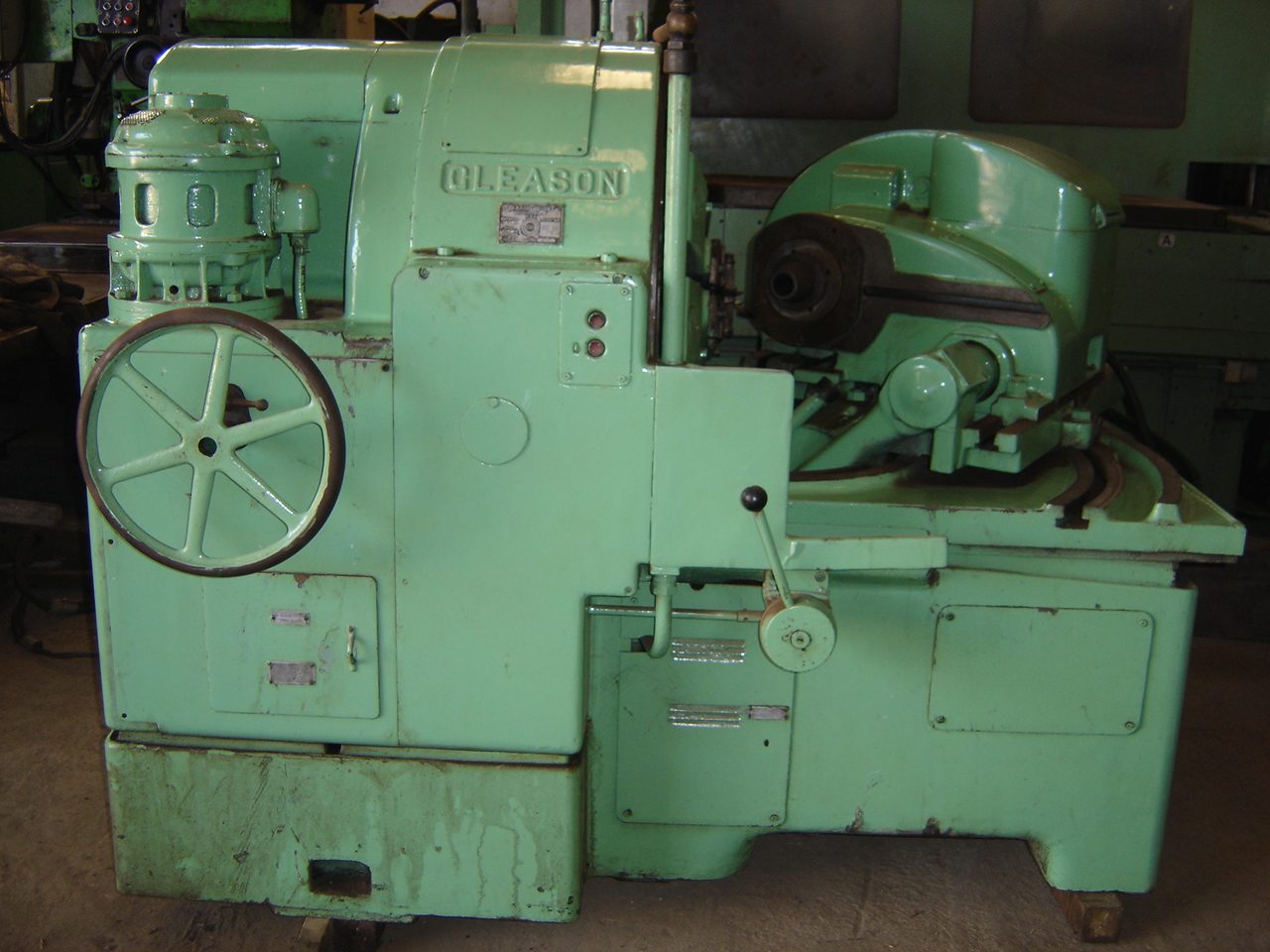

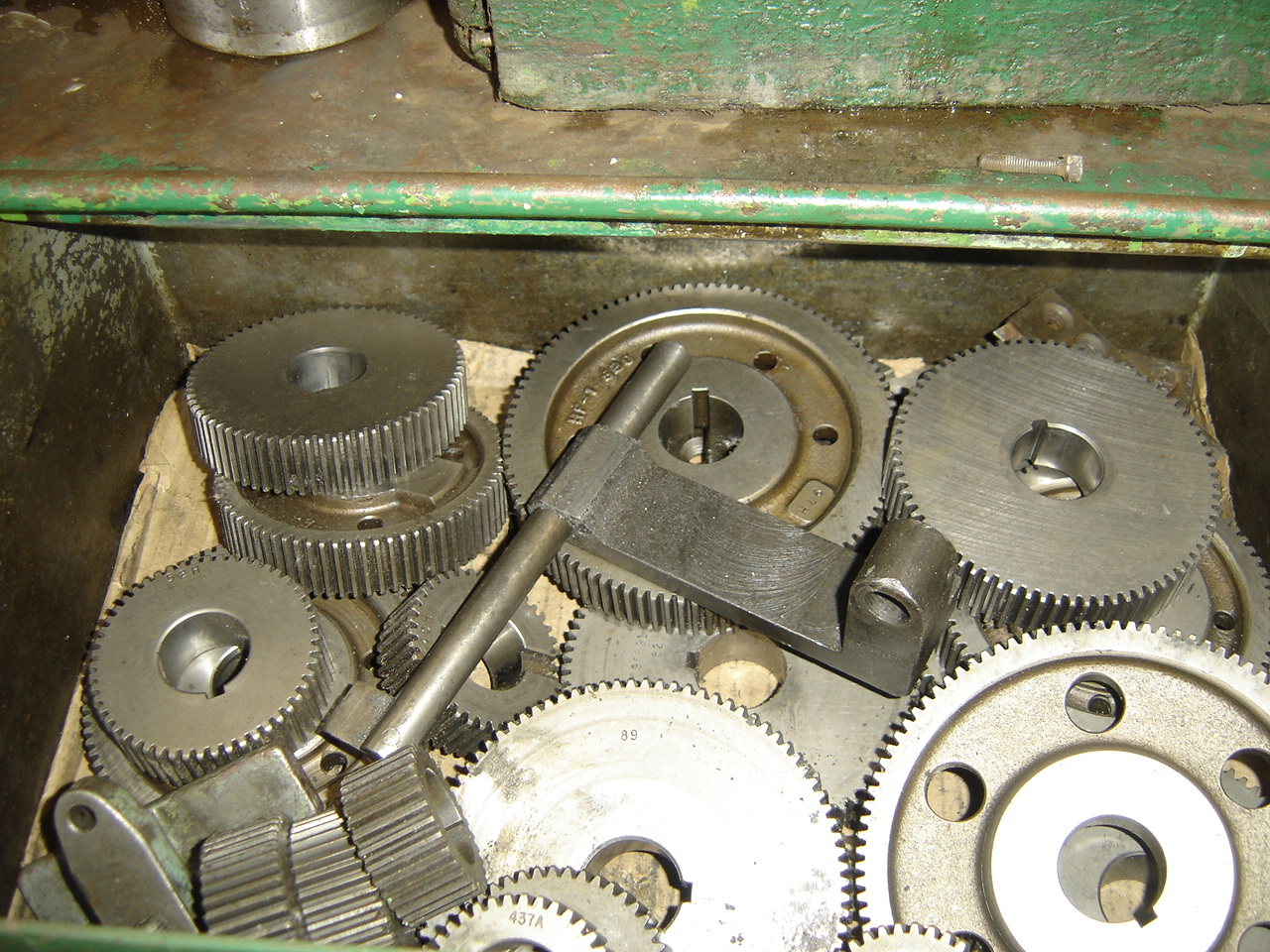

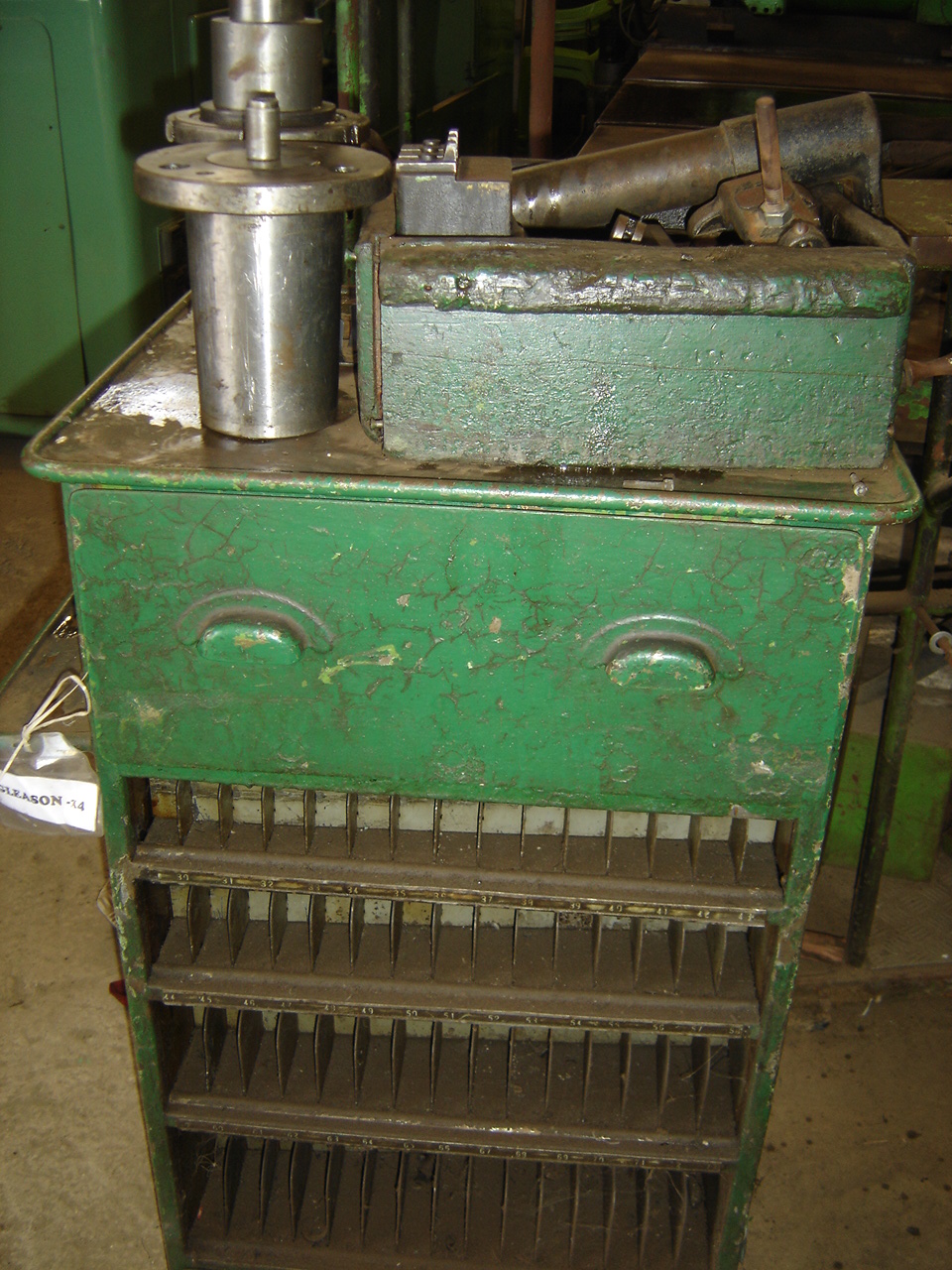

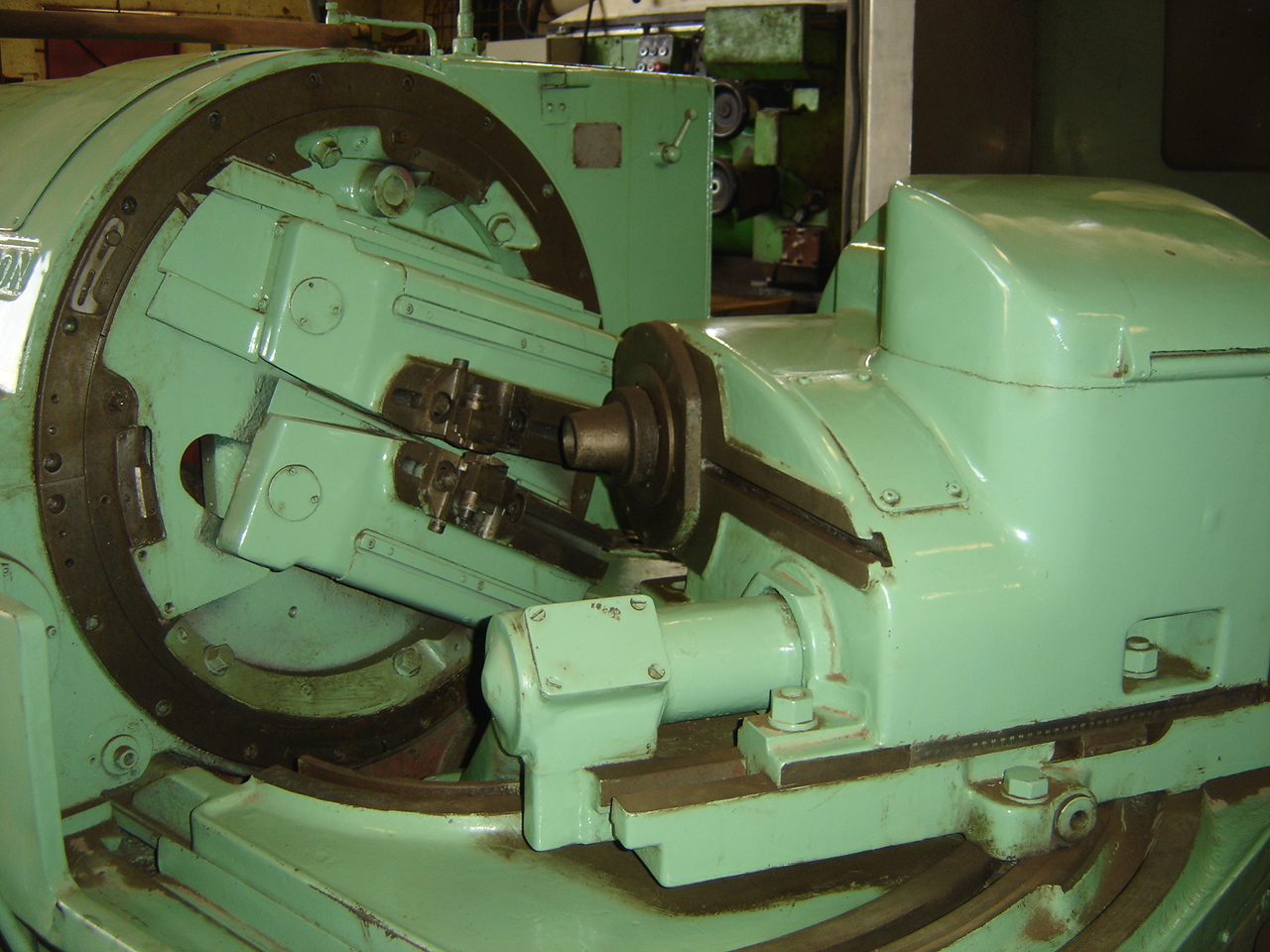

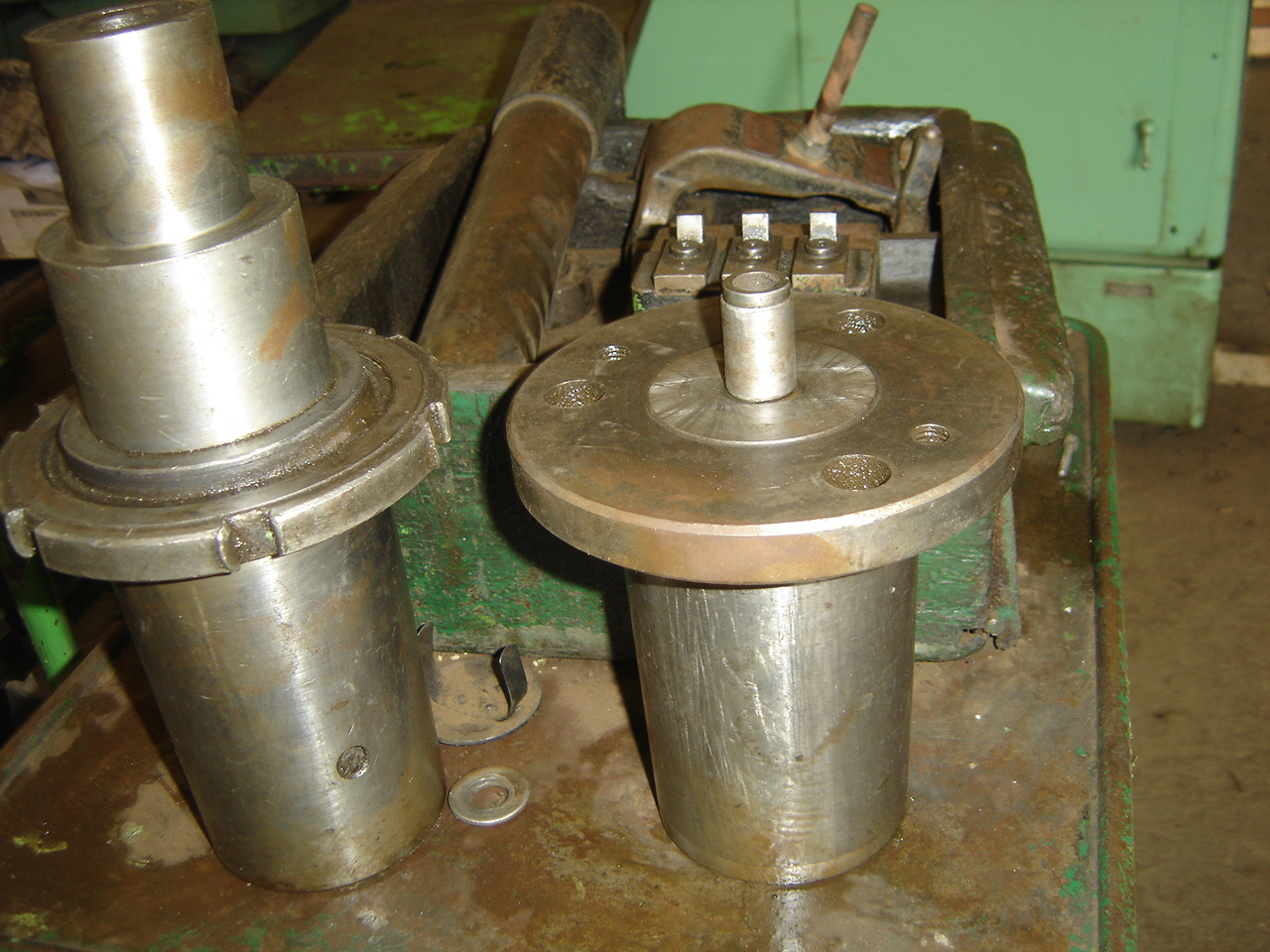

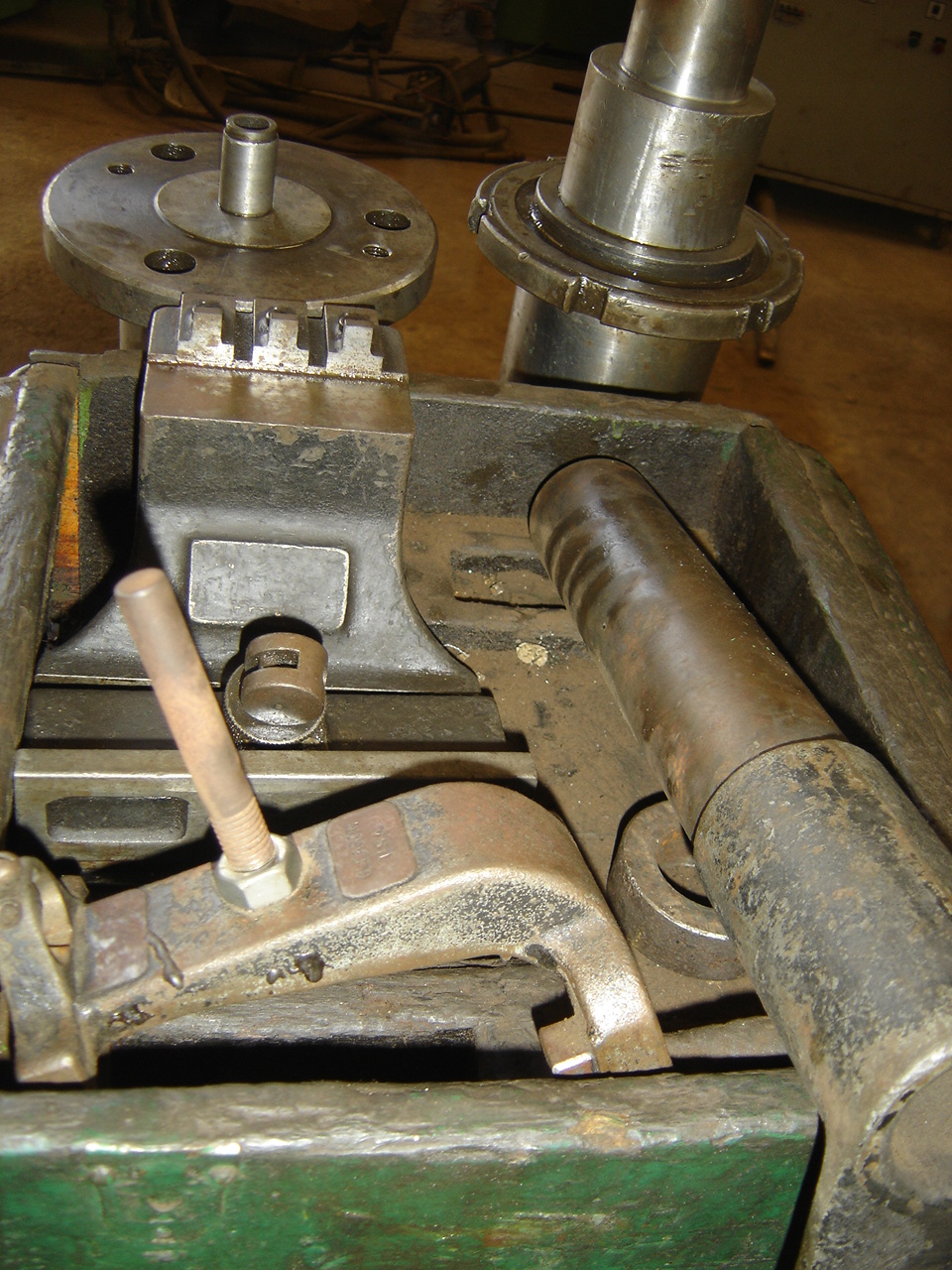

Straight CONIFLEX STRAIGHT BEVEL GEAR GENERATOR |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
Maximum cone distance (2.75"-3.5" face)^12"
Maximum cone distance (1" face)^11-1/8"
Minimum cone distance^0"
Maximum pitch angle (angular gears)^105 deg
Maximum pitch angle (90-degree shafts)^84 deg/18min.
Minimum pitch angle^5 deg/42min.
Maximum ratio^10/1
Maximum pitch diameter^(see table)
Maximum face width^3.5"
Maximum Stroke Length^.5"-4.5"
Index Range (inclusive (+up to 200)^5-100
Maximum pitch^3 DP (nominal)
Diameter of hole in work spindle (large end)^3-29/32"
Spindle taper per foot^39/64"
Depth of spindle taper^6"
Diameter of spindle hole (15.75" deep)^3.25"
Spindle nose to center line^2.5 to 15"
|
|
|
|
|
|
